    Bank Safe - Saxion University of Applied Sciences - Student Project


                         The project was made in 2017 at Saxion University of Applied Sciences. This is a student project in first year in specialty Electrical and Electronic Engineering. The assignment was to make bank safe (schematic, pcb and after that make it real).
    Fig 1.1.1 Schematic of the Bank Safe


                                         The schematic of the Fig 1.1.1 is made and simulated with MultisimMultisim is an industry-standard, best-in-class SPICE simulation environment. It is the cornerstone of the NI circuits teaching solution to build expertise through practical application in designing, prototyping, and testing electrical circuits.

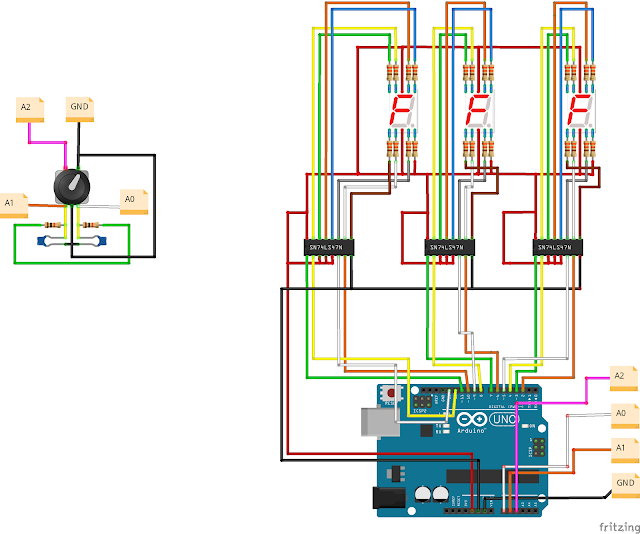

    Fig 1.1.2 Prototyping schematic of the Bank Safe
           The prototyping schematic of the Fig 1.1.2 is made and simulated with Fritzing. Fritzing is an open source initiative to develop amateur or hobby CAD software for the design of electronics hardware, to support designers and artists ready to move from experimenting with a prototype to building a more permanent circuit.

    Fig 1.2 PCB without polygon

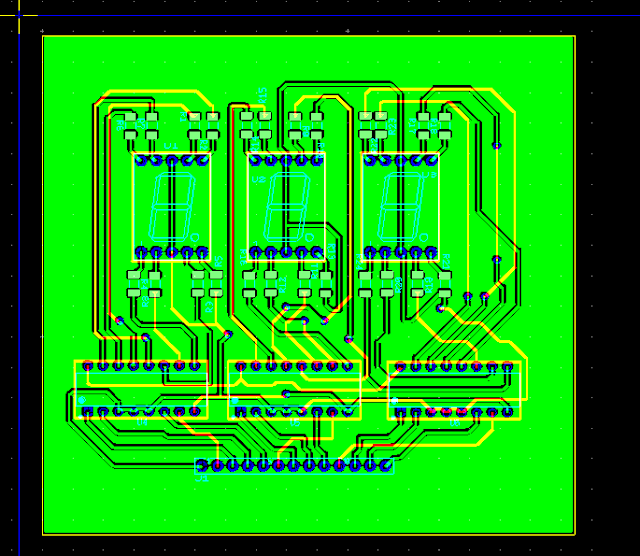

    Fig 1.3 PCB with polygon ( Top )

    Fig 1.4 PCB with polygon ( Bottom )

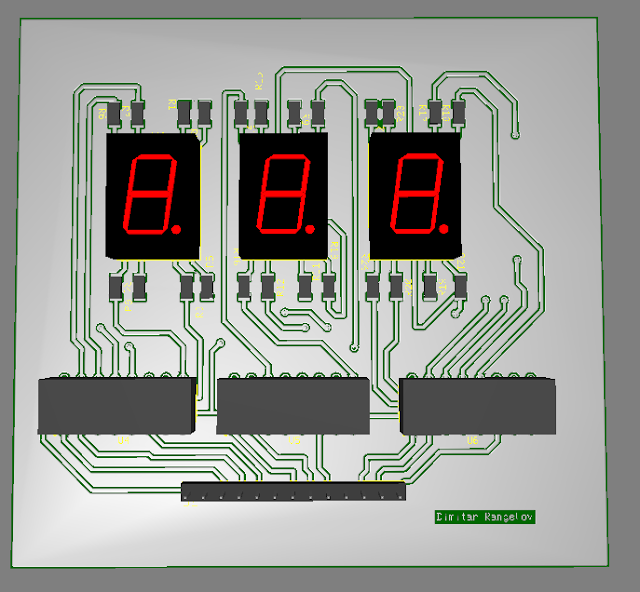

    Fig 1.5.1 3D model of PCB ( Top )

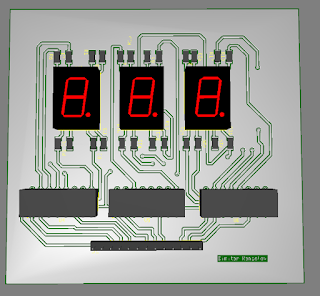

    Fig 1.5.2 3D model of PCB ( Bottom )

                         The PCB of the Fig 1.2,
    Fig 1.3 and Fig 1.4 is made with Ultiboard. Also the 3D models of the PCB of the Fig 1.5.1, Fig 1.5.2 are made. Ultiboard is a rapid printed circuit board (PCB) prototyping environment used by engineering professionals, educators, makers, and students across many applications.

                       If you want to see more information about the program will be posted the full code below.
