                      The aim of the project is to collect fire samples to investigate the causes of these fires.I am responsible for the electronics that have to be added to the drones for sampling.

    Fig 1.1 Schematic of the controlling part
                    The schematic of the Fig 1.1 is made and simulated with MultisimMultisim is an industry-standard, best-in-class SPICE simulation environment. It is the cornerstone of the NI circuits teaching solution to build expertise through practical application in designing, prototyping, and testing electrical circuits.

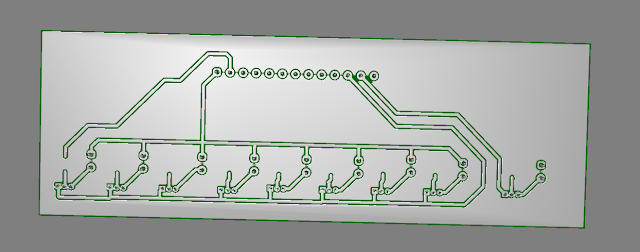

    Fig 1.2.1 PCB without polygon
    Fig 1.2.2 PCB with polygon ( Top )
    Fig 1.2.3 PCB with polygon ( Bottom )
    Fig 1.2.4 PCB with polygon ( Top and Bottom )

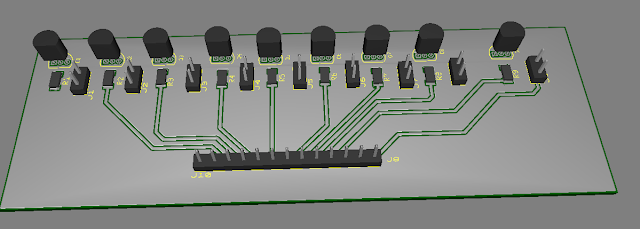

    Fig 1.3.1 3D model of PCB ( Top )

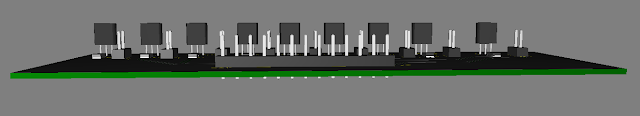

    Fig 1.3.2  3D model of PCB ( Bottom )

    Fig 1.3.3 3D model of PCB



                         The PCB of the Fig 1.2.1, Fig 1.2.2, Fig 1.2.3 and Fig 1.2.4 is made with Ultiboard. Also the 3D models of the PCB of the Fig 1.3.1,Fig 1.3.2 and Fig 1.3.3 are made. Ultiboard is a rapid printed circuit board (PCB) prototyping environment used by engineering professionals, educators, makers, and students across many applications.

                       If you want to see more information about the program will be posted the full code below.
